novaphit^®
Graphite gaskets

Customized pure graphite gasket solutions

The novaphit^® product family is ideal for extreme applications. It is designed for use in a temperature range from -200 °C to 550 °C and has very good chemical resistance, which makes it a reliable gasket material in extreme conditions. In addition to the very good sealing function thanks to high adaptability and low creep behavior, novaphit^® gaskets are also suitable as heat transfer solutions.

novaphit^® gasket solutions help reduce emissions, increase energy efficiency and are typically used in the following applications:

Gasket in exhaust systems, turbo chargers and EGR systems
Heat transfer solution in household appliances
Thermal gasket in HVAC systems
Secondary gasket in drive trains

novaphit^® SSTC consists of expanded pure graphite (purity: at least 99%) and is additionally reinforced with an expanded metal insert (1.4404, AISI 316 L). This material composition enables use in applications with narrow geometries (gasket widths) and frequently changing loads. In addition, the expanded metal insert in novaphit^® SSTC supports surface pressure distribution due to is three-dimensional structure.

novaphit^® SSTC can also be supplied with XP technology on request.

Brochure, technical data sheet and characteristic values

novaphit^® Brochure

Certifications, approvals and tests:

Certificate IATF 16949 Quality management Mobility

Certificate ISO 9001 Quality management

Certificate ISO 14001 Environment management

Certificate ISO 45001 Occupational Health & Safety Management

Certificate ISO 50001 Energy management

BAM Report for Oxygen novaphit^® SSTC

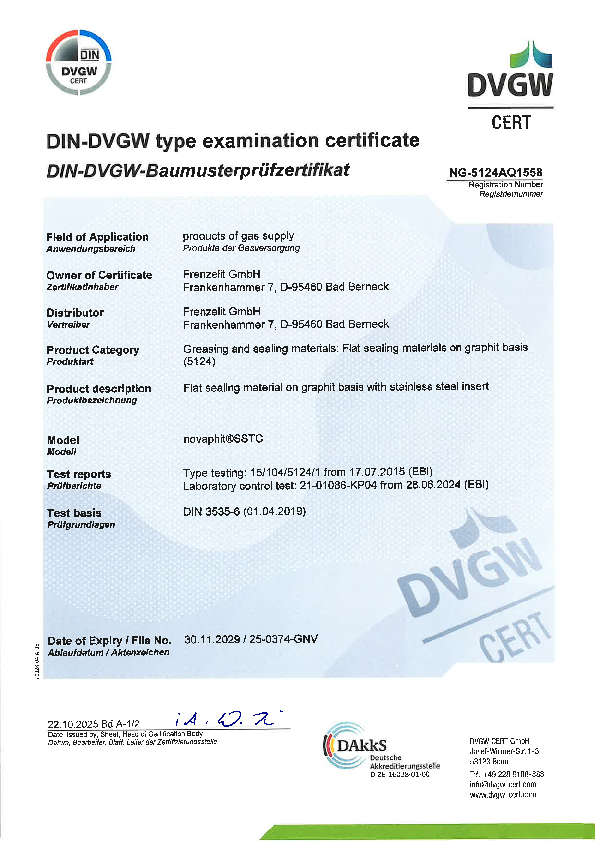

Examination Certificate DVGW novaphit^® SSTC

novaphit^® MST is the all-star among our gasket solutions in the novaphit^® product family!

The combination of pure graphite, expanded metal and flat metal (up to 15 layers depending on type and thickness) can withstand maximum pressures, temperatures and changing loads, making it a “one size fits all” solution for applications in extreme conditions.

novaphit^® MST gasket solutions come standard with XP technology, which has a positive effect on oxidation resistance and makes it easier to remove.

Brochure, technical data sheet and characteristic values

novaphit^® Brochure

Certifications, approvals and tests:

Certificate IATF 16949 Quality management Mobility

Certificate ISO 9001 Quality management

Certificate ISO 14001 Environment management

Certificate ISO 45001 Occupational Health & Safety Management

Certificate ISO 50001 Energy management

novaphit^® MST TA Luft

Examination Certificate DVGW novaphit^® MST

Blow-out resistance VDI 2200 novaphit^® MST

Custom geometries made from novaphit^® 400 are designed for applications with limited space or where very small gaps need to be sealed reliably in the extreme conditions mentioned above.

The combination of pure graphite and acid-resistant flat metal makes it possible to create very thin and very fine gasket solutions at very affordable prices.

Brochure, technical data sheet and characteristic values

novaphit^® 400 Brochure

Certifications, approvals and tests:

Certificate IATF 16949 Quality management Mobility

Certificate ISO 9001 Quality management

Certificate ISO 14001 Environment management

Certificate ISO 45001 Occupational Health & Safety Management

Certificate ISO 50001 Energy management

Compliance with food acc. to EU 1935/2004 novaphit^® 400

novaphit^® VS gasket solutions are designed without a reinforcing insert, which makes them suitable for applications involving aggressive media. The finished gasket is slightly pre-compressed in the production process to facilitate installation.

novaphit^® VS can also be supplied with XP technology on request.
