Gaskets
Customized series products

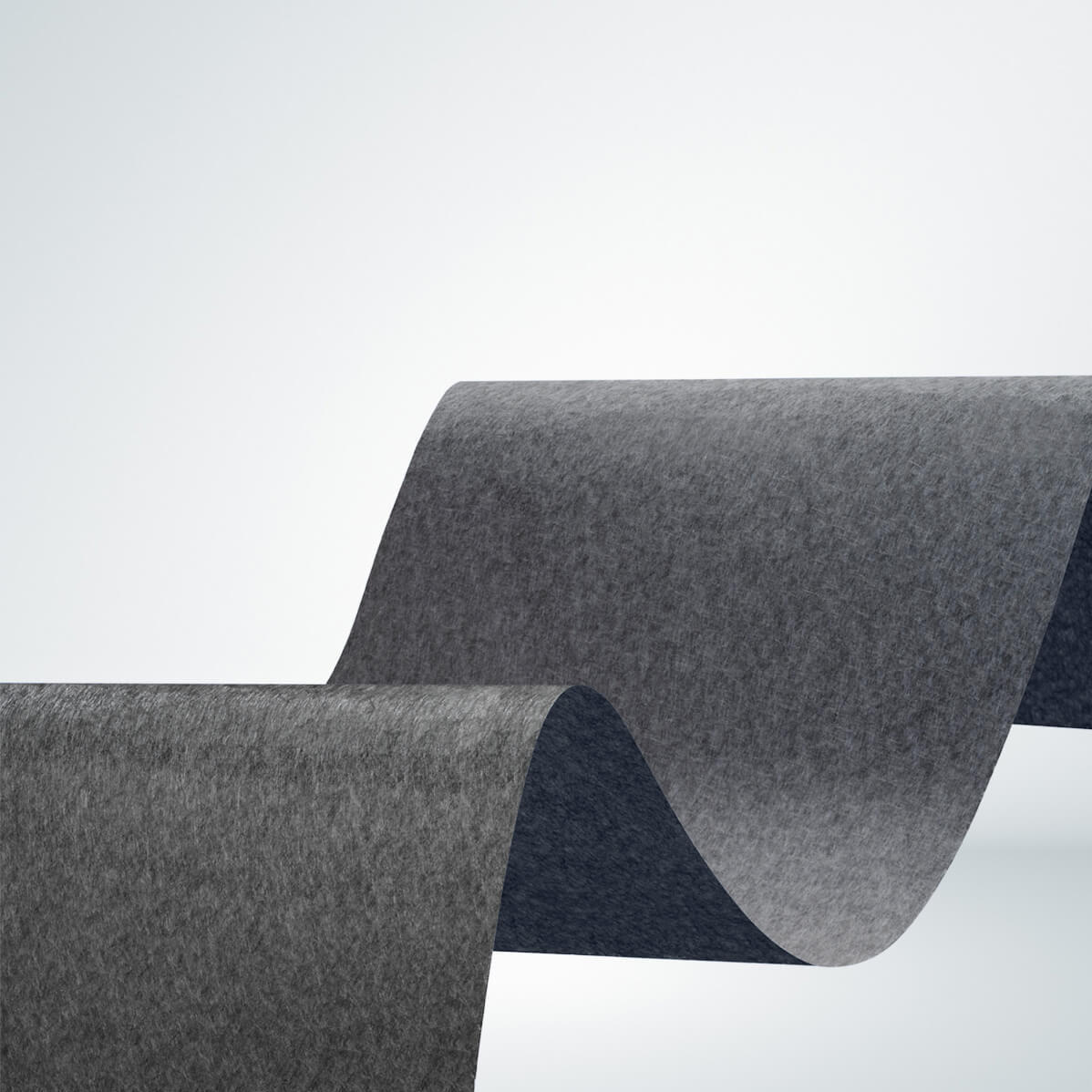

novaform® SOFT COMPOUNDS
Technical films
Gasket solutions made from technical films
Like our novaform® soft gaskets, novaform® SOFT COMPOUND gasket solutions are primarily comprised of fibers and fillers.
What makes custom solutions with novaform® SOFT COMPOUNDS different is that they are designed for sealing liquid media in the price-sensitive automotive aftermarket.
novaform® SOFT COMPOUND gaskets are also suitable as a separating layer, e.g. for galvanic, thermal or acoustic decoupling.<br/>
Product details
| Type | Binder | Density* | Standard thicknesses | Adaptability | Standard color |
|---|---|---|---|---|---|
| novaform® 2100 | NBR | 1.33 g/m³ | 0.3 - 1.0 mm | very good | dark gray |
| novaform® 2150 | SBR | 1.50 g/m³ | 0.3 - 0.8 mm | good | gray |
| novaform® 2200 | NBR | 1.55 g/m³ | 0.3 - 1.0 mm | excellent | dark gray |
| novaform® 2500 | NBR | 1.80 g/m³ | 0.3 - 1.0 mm | good | white |
*Modal value (typical value)

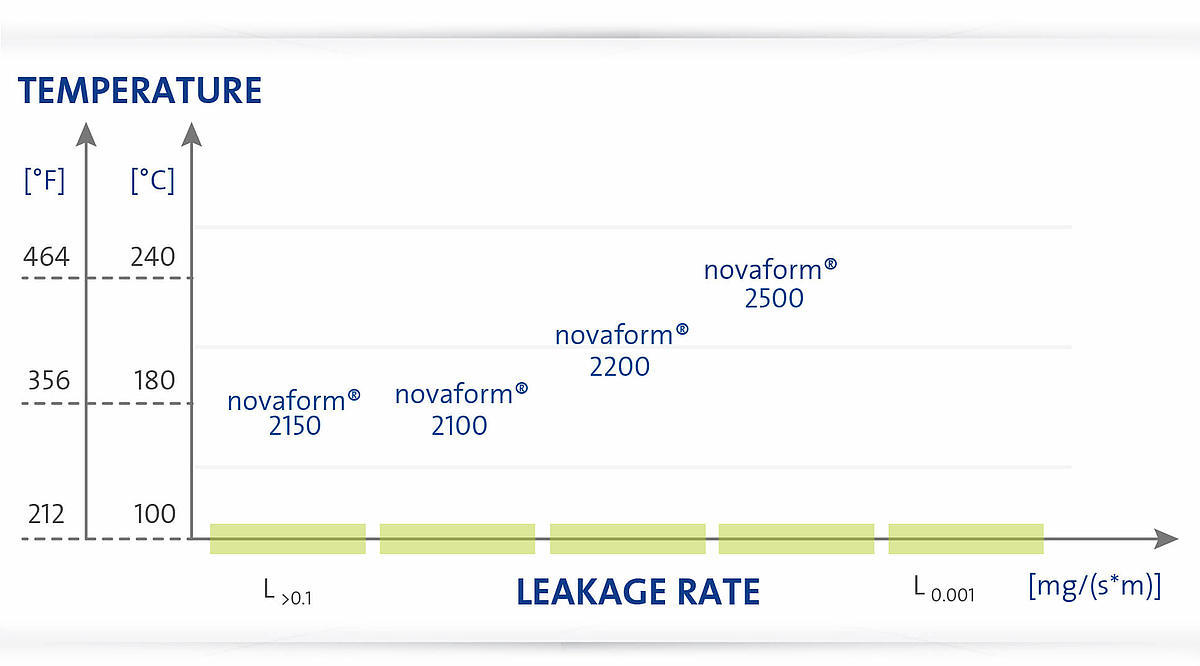

Application areas: Gaskets
The specifications depend on the internal pressure level and surface pressure and are therefore an estimate and not fixed application limits. Due to the variety of different applications, it is not possible to consider specific approval requirements.
